22kg portable computer auto parts laser marking machine

CKD-PLMN V20.02 updated the weight andfocus way from old versions, it\'s 22Kg net weight, 300W of whole machine whenrunning full energy, using one key to control both up and down focusing, mucheasy for new users and is practically portable.* Free install, the user can use itdirectly when receiving the machine.* Easy focus by one

Featured Products


22kg Portable Laser Marking Machine for Computer Car Parts

CKD-PLMN V20.02 updated the weight andfocus way from old versions, it's 22Kg net weight, 300W of whole machine whenrunning full energy, using one key to control both up and down focusing, mucheasy for new users and is practically portable.

22kg Portable Laser Marking Machine for Computer Car Parts


* Free install, the user can use itdirectly when receiving the machine.
* Easy focus by one key, precise and speed adjustable.

22kg Portable Laser Marking Machine for Computer Car Parts


* Multi material processing, including gold,silver, copper, iron, stainless steel, aluminum, alloy, plastic, stone, darkleather and paper, painted surfaces, etc.

22kg Portable Laser Marking Machine for Computer Car Parts

* Small body with big laser scan scope,35*37 base, travel distance of Z-axis column is 9-43cm, support 20W and 30Wfiber laser in this type.


22kg Portable Laser Marking Machine for Computer Car Parts

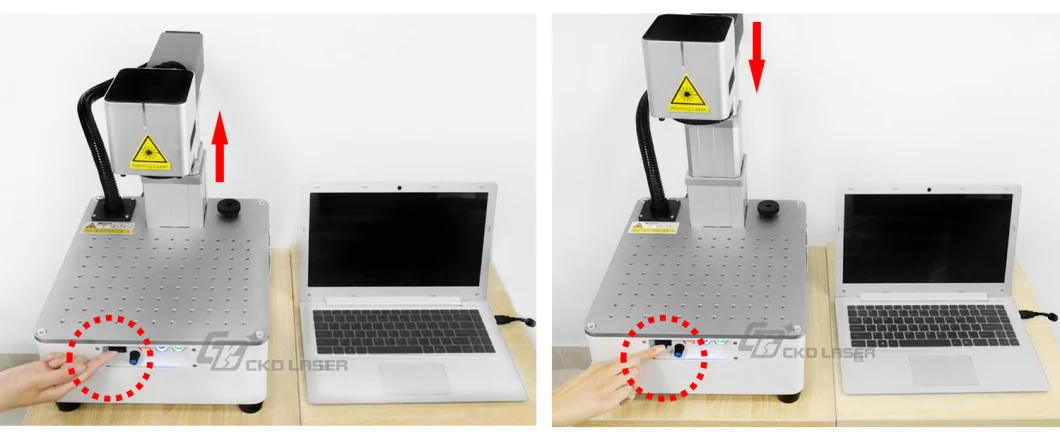

Dial this switch upward, the marking head goesup, dial it downward, the marking head goes down, the next speed knob is usedfor adjusting the move speed, so that the focusing adjustment can be fast orslow down precisely.
PLMN V20.09 canbe controlled by any kind of window computer.

22kg Portable Laser Marking Machine for Computer Car Parts

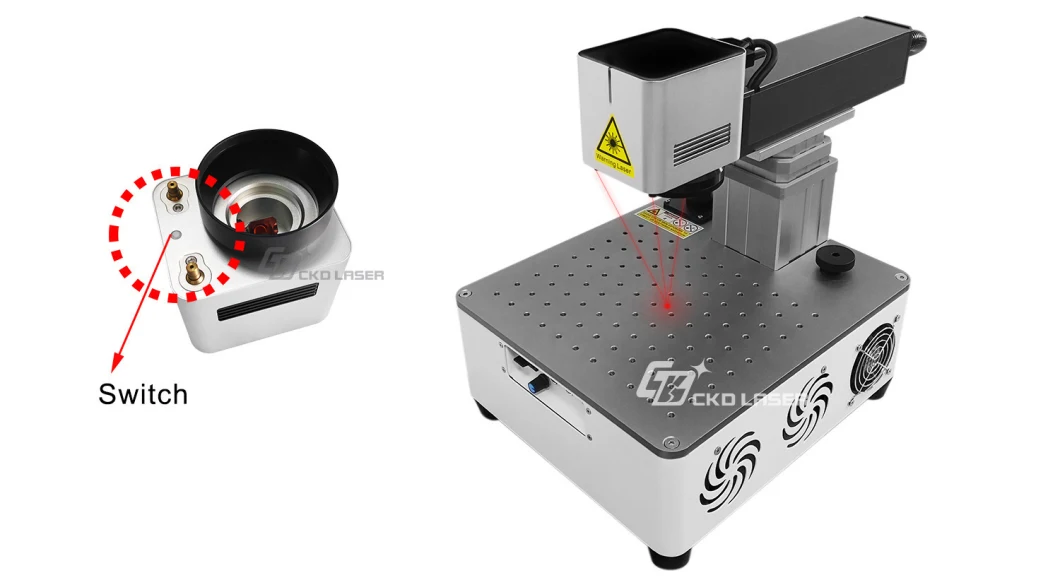

It's right focus when three red dots overlap.There are two dots fixed under the galvanometer, so that they are not easy tobe disturbed during and avoided off-set. The switch under the galvanometer controlthose two lights on/ off to expand service life or avoiding distraction when engravingspecial material. Easy change from outside for those lights, avoiding open thelaser to replace or maintenance.


22kg Portable Laser Marking Machine for Computer Car Parts

Cooperate with topmarking software BJJCZ, orginal control baord and authorized newest EzCad2marking software. Quality assurance, powerful function, including vectors editand mark, photo marking, QR code automatially coding, series number jumping, annularsurounding edit, rotary engraving and so on.


22kg Portable Laser Marking Machine for Computer Car Parts


One USB cable link the machine to computer, one step to plug on rotary for marking surrounding rings and so on, can use foot-switch to release hands to start laser when ready.

Notice please: rotary is optional part which isn;t incuded in the machine. More optional parts, please check our website: product > device, or consult online service for suggestions.

Configuration choose:
TypeCKD-PLMN-20CKD-PLMN-30
Laser SourceFiber LaserFiber Laser
Laser Power20W30W
Marking Scope   (Optional)100*100/150*150mm100*100/150*150/200*200mm
Focus WayThree   DotsThree   Dots
    Motorized Up/Down    Motorized Up/Down
Control BoardOrginal BJJCZOrginal BJJCZ
Marking   SoftwareAuthorised Newest   EzCad2Authorised Newest   EzCad2
Dimension35*37*(41-75)cm35*37*(41-75)cm
Net Weight22Kg22Kg
Total Power300W300W

22kg Portable Laser Marking Machine for Computer Car Parts

Global shipping by express, support SF andDHL, 3-5 work days after payment.

Contact us to place order:
Please list the configuration requirements,your company information and send them to the online service dialog. Our saleswill contact you as soon as possible. Thank you.
