Features:
1.Adopts the USA RF laser generator, high speed scanning vibrating lens and extending focusing system, high precision, high speed.
2.Red light positioning system,ensure accurate positioning,avoid waste.
3.Professional marking software owns strong graphics drawing and editing funcion,enable direct marking of color graphic or marking after color convert from RGB to grey scale.
4.It is popular with it's high precision, high speed, carving depth of random control. It can be applied to a variety of non-metal engraving. No consumables, Marking clear, not easy to wear and tear.
Machine details:
Function:
1, marking content: any text or icon in English, Arabia digital, serial number, VIN number, two-dimensional code, logos, etc.;
2, character arrangement: horizontal, inclined, arc, arbitrary permutation;
3, any optional font;
4, the character size, spacing can be adjusted freely;
5, applicable materials: metal, hard alloy, ceramic, plastic etc.;
6, the bar code scanning input marking or labelling and print bar code;
7,The output data from the network 7, read or;
8, and other equipment to contact PLC function.
Technical Parameters:
MACHINE MODEL | IGM10w | IGM20w | IGM30w |
LASER POWER | 10W | 20W | 30W |
LASER LASER POWERWAVELENGTH | 1064nm | 1064nm | 1064nm |
FIBER LENGTH | 2.5m | 2.5m | 2.5m |
LASER UNIT USING LIFE | 100,000 hours | 100,000 hours | 100,000 hours |
MARKING SPEED | <= 12000mm/s Character marking speed and production line speed depend on material , character size and desired marking quality | ||
MARKING SPEED | 2-3 digital(2*3mm)/ 0.01s | 3-5 digital(2*3mm)/ 0.01s | 5-8 digital(2*3mm)/ 0.01s |
MARKING DEEPTH | 0.01-0.2MM | 0.01-0.2MM | 0.01-0.5mm |
MIN. LINE WIDTH | 0.01MM | 0.01MM | 0.01MM |
MIN. CHARACTER HEIGHT | 0.2MM | 0.2MM | 0.2MM |
MARKING FILED | (110*110mm (focal length f=160mm)
| (110*110mm (focal length f=160mm) Optional 175mm lens | (110*110mm (focal length f=160mm) Optional 175mm lens , 250mm lens |
POWER SUPPLY | 220V 50HZ / 2A | 220V 50HZ/2A | 220V 50HZ/2A |
POWER CONSUMPTION | 300W/hours | 800W/HOUR | 1000W/HOUR |
COOLING | AIR | AIR | AIR |
POSITIONING | Visible red power | Visible red power | Visible red power |
OPERTAION TEMPERATURE | 25ºC to 28ºC | 25ºC to 28ºC | 25ºC to 28ºC |
HUMIDITY | 5% to 75% (no condensation) | 5% to 75% (no condensation) | 5% to 75% (no condensation) |

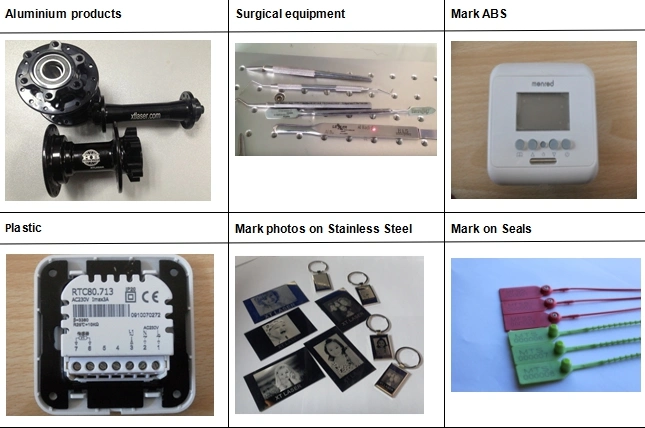

Applicable Industries:
1.Used for fields with higher requirements in depth, smoothness and precision;
2.Used to engrave metallic and non-metallic materials, for example, stainless steel decorating parts for handsets, clocks, watches, moulds, ICs, handset buttons, bitmap marking etc.
