Fiber Laser marking marking machine is widely used in marking engraving on metal and non-metal material. such stainless steel parts, aluminum phone cases printing, plastic parts, pen, annimal ear tag, nameplate and so on.
---Features of metal Laser engraver:
1. 100000 Hours Long lifetime, No consumables, Free of Maintenance.
2. Best Marking Effect, Deep Marking, Higher Accuracy.
3. No need to adjust the laser path, Use Integrated Air Cooling.
4. Low Power Consumption, Small and compact
---Equipment for metal Laser engraver:

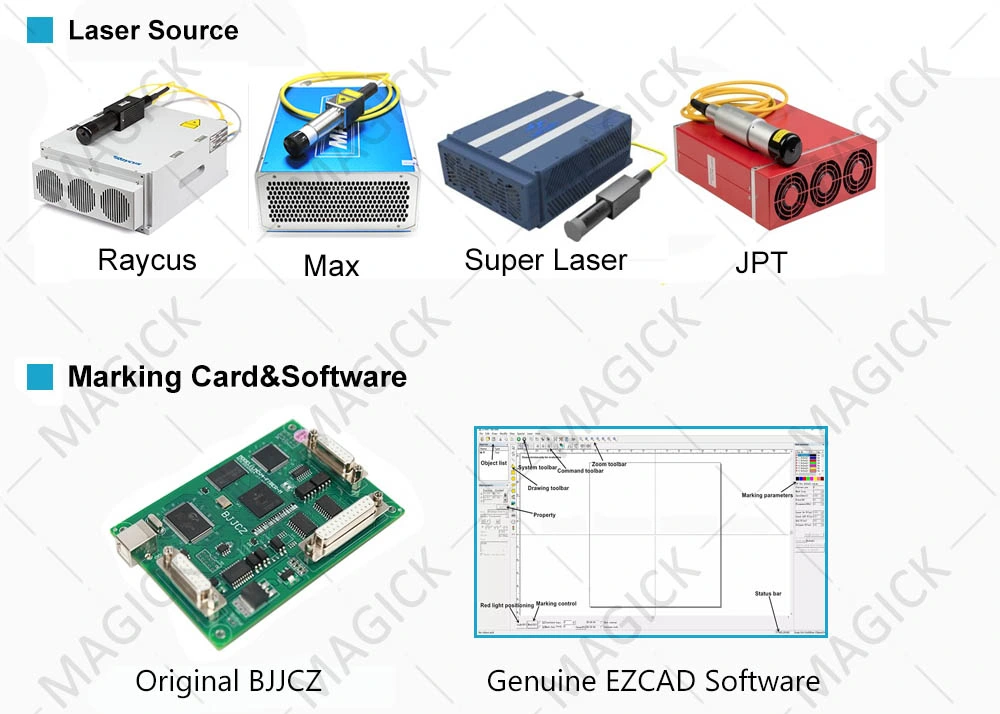

1. World famous laser source- fiber laser device .
2. Famous Chinese Brand - Focus Lens
3. Laser Power Supply.
4. Laser Switch Power
5. Laser Galvanometer Scanning head
6. Magick Laser - Red light pointer
7. Magick Laser - Laser Controlling Cabinet
9. Magick Laser - Latest V 2.14 version Laser Marking Software with powerful edit function.
10. Red light
11. 2 Fan, 1 Power Unit Jointer
12. One set of marking software backup
13. Sufficient fitting parts for using in guarantee period (12 month) totally Free of Charge
14. Life-long after-sales service. Free consultation & guidance support.
15. Fitting Parts (Free of Charge): 1 set of tools, 2 sets of laser beam detector
metal Laser engraverTechnical data:
|Type||Portable||Desktop||Split||All in One|
|PC includes or not||Not includes PC||Includes PC|
|Brand||Max, Raycus, IPG and JPT|
|Mode of operation||Pulsed|
|Nominal average output power||20W, 30W, 50W, 100W|
|Central emission wavelength:||1060-1070 nm ,Q-switched operation Output power |
adjustment range 10%-100%
|Emission Bandwidth (FWHM)||<10 nm|
|Long-term average power instability||<5%|
|Pulse width, (FWHM)||100 ns|
|Laser switching ON time||180 μsec|
|Laser switching OFF time||180 μsec|
|Pulse Repetition Rate* kHz||20-80 kHz|
|Energy per pulse (PRR = 20 kHz)||0.95 mJ|
|Typical beam quality, M2||<1.8|
|Output fiber delivery length||3m|
|Max. Power consumption:||600W|
Laser Marking Machine application field and material:
|Electronic Components :||Resistance, capacitance, chips, printed circuit boards, computer keyboard.|
|Apparatus And Meter:||Panel signs, precision equipment ,etc.,|
|Instrument:||Panel signs nameplates, precision equipment ,etc.,|
|Hardware Tools :||Knives, tools, measuring tool, cutting tool, etc.,|
|Automobile Parts :||Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.,|
|Mechanical Parts :||Bearings, gears, standard parts, motors, etc.,|
|Daily Necessities :||Handicrafts, zipper, key holder, sanitary ware, etc.,|
|Jewelry Rings:||Jewelry, gold, silver,etc.|
|Food, drinking packing:||Plastic packings,etc.|
----Our after- sale service:
We have 2+1 year guarantee for the machine
We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, easily understood and handle by the customer.
