| Portable Split 3w 5w 10w UV laser marking machine |
 |
| Introduction of machine advantages: >>Ultraviolet laser belongs to cold light source. The thermal influence is very small when laser cutting or marking. It is more suitable for deep processing of materials that are sensitive to thermal influence. >>Ultraviolet lasers have narrower pulse widths and higher peak powers. Materials with higher damage thresholds such as ceramic sapphire can easily break through their damage thresholds, so it is easy to process polymers with high damage threshold material. >>The minimum spot after the UV laser is focused can reach 15UM, so it is very suitable for micro-hole drilling. |
| UV Machine introduction The UV laser series models inherit the advantages of previous generations of solid-state laser marking machines, with ultra-high-speed marking methods; the machine is stable and reliable; the entire machine has low operating and maintenance costs and a wide range of applications; and uses high-precision 355nm end-pump UV laser , High beam quality, small focusing spot, perfect marking quality, can achieve ultra-fine marking; and the heat affected area of the marking is extremely small, which solves the thermal deformation, scorching and other problems of the processing material, which has a greater effect on the marking The product of choice for demanding customers. |
| Quality part on our UV laser Marking machine | |
 | Famous brand JPT UV laser source: •Stable output of power and pulse width • Excellent beam quality, M²<1.2 • High beam pointing stability • Wide repetition rate range:20-200kHz • Controllable with RS232 interface • Unique Intracavity frequency doubling technology. • Triggerable external |
 | Genuine BJJCZ board: •Quality Genuine EZCAD control software and program(BJJCZ brand) which support XP WIN7 /8 /10 32/64 bit operating system. |

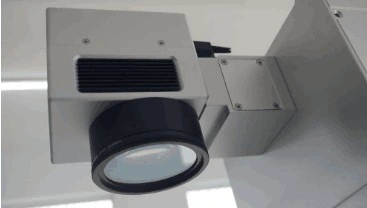

 | Galvo head: •Best quality scan head in China |
 | Industrial water cooler •Can cool or heat the laser source to better extend the life of the laser source |
 | Development Power •Can maintain the machine for long and stable work |
| Machine marking sample display |
 |
| Machine parameters | |||
| Model | RF-UV-3W | RF-UV-5W | RF-UV-10W |
| Average output power | >3W@40kHz | >5W@60kHz | >10W@80kHz |
| Pulse Width | <10ns@40kHz | 10ns@60kHz | <12ns@80kHz |
| Wavelength | 355nm | ||
| Pulse Repetition Rate | 30kHz-200kHz | 40kHz-300kHz | |
| Cooling way | Water cooling | ||
| Machine weight | About 150kg | ||
| Graphic format supported | JPG,BMP,DXF,PLT | ||
| Working voltage | AC220v 50hz/AC 110V 60KHZ | ||
| Machine packaging |
 |
Collect all accessories and spare parts one by one according to the order list, and check all parts carefully again to ensure that all parts are included. + Thick fresh-keeping film + Hexahedral pearl cotton + High Strength Wooden Box + Packing the belt and fixing the machine to ensure the safety of the machine during transportation. Paste transport marks to ensure that the buyer can easily identify the correct machine. Posting safety signs can remind shippers to take good care of our equipment during transportation. |
| Machine packing list | |
| UV laser marking machine | 1SETS |
| Industry chiller | 1SETS |
| Foot switch | 1SETS |
| power cable | 1SETS |
| USB cable | 1SETS |
| CD | 1SETS |
| English manual | 1SETS |
| Focus ruler | 1SETS |
| hexagon bar wrench | 1SETS |
 |  |
| Desktop UV laser marking machine | |
 |  |
| 1.We also have desktop UV laser marking machines. 2.The function and price of the desktop laser marking machine and the portable split laser marking machine are exactly the same. You can choose according to your needs. | |
| After-sale Service |
| 1. Free inquiry and consulting support. 2. Free sample testing. 3. 24 hours detection process by professional testing equipment and facilities before shipment. 4. "Trade Assurance" free payment protection service for buyer. 5.We offer free replacement parts,If the damage occurs due to the quality of the accessories, we can replace the new ones for free, but you need to mail the broken parts back. 6.Our machine will be sent out after at least 10 hours of testing before shipment to ensure that the machine will not have any quality problems. |
| FAQ |
| Q1--How about the delivery time? A1--For ordinary machines, we can send the machines five days after receiving the deposit. Q2--How about warranty time? Q3--How to Conduct the After-sale Maintenance? Q4--Is the machine sent with the Industrial water cooler? Q5--What if I do n't know how to use the machine? Q6--I don't know if this machine can mark the marking effect I want? |
